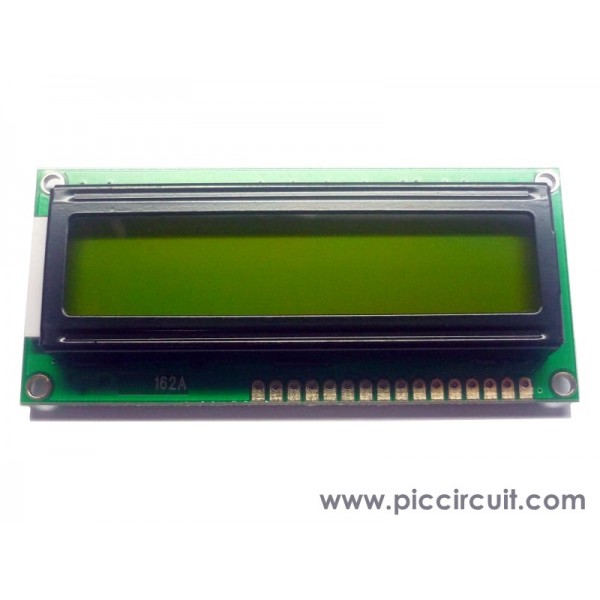

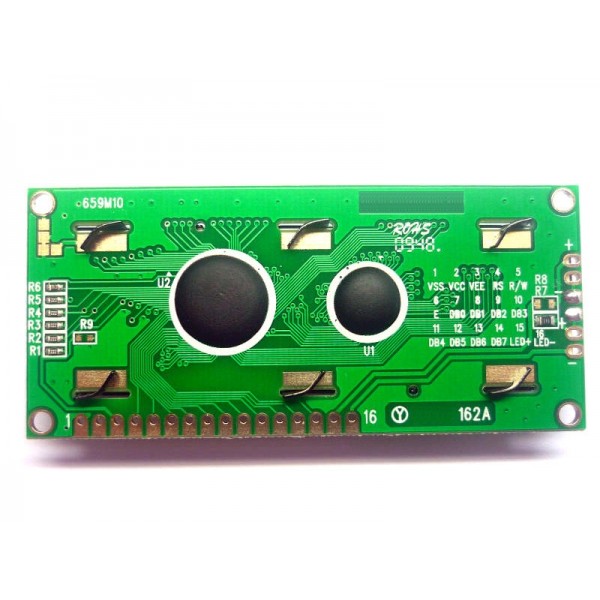

2x16 LCD Display (Yellow Backlight)

2x16 LCD Display (Yellow Backlight)

2x16 LCD display can be used to display up to maximum of 32 characters. Free Hi-Tech C coding is provided for the LCD control.

More details


$5.90

Availability: In-Stock

19 items in stock

Add to my wishlist

  • Currently 3.00/5

Rating: 3.0/5 (2 votes cast)

4 other products in the same category:

Specification:

  • Display: 16 characters x 2 lines
  • Backlight: Yellow
  • Operating temperature: 0°C to 50°C
  • Operating voltage: 4.5V - 5.5V
  • Backlight voltage: 5.0V (100mA)



Dimension:


  • Module size: 80mm x 36mm x 13.5mm
  • Viewing area: 64.5mm x 14.5mm
  • Mounting hole (Diameter): 2.9mm



Download:



Remarks:

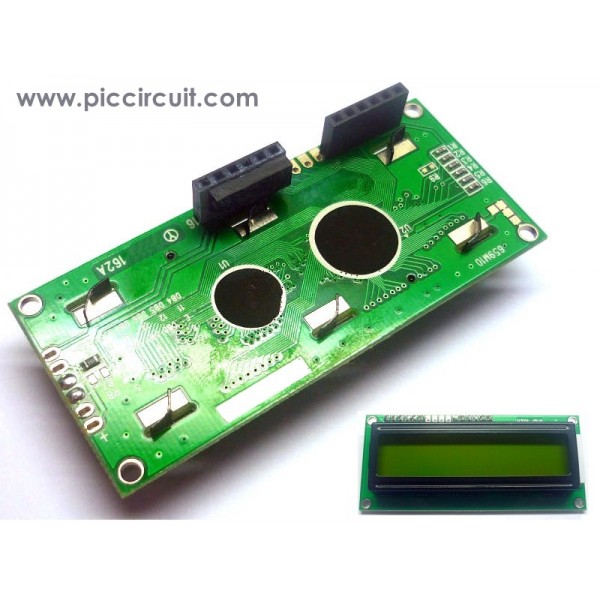

  • For iBoard usage, please choose 'Connector: Pin Socket'



Photos (with iBoard):

  • Backlight turns off
  • Backlight Off



  • Backlight turns on
  • Backlight On



Cautions:

  • Overvoltage or wiring connection mistake will permanently damage the LCD
  • Keep away from extreme heat and humidity
