Home>Display>128x64 Graphic LCD Display (Blue Backlight)

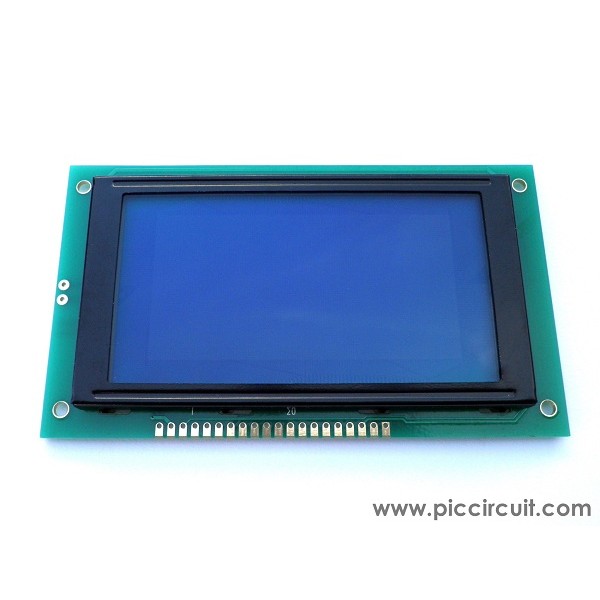

128x64 Graphic LCD Display (Blue Backlight)

128x64 Graphic LCD Display (Blue Backlight)

128x64 Graphic LCD Display (Blue Backlight) can be used to display up to maximum of 128 x 64 pixels.

More details


$18.00

Availability: In-Stock

61 items in stock

Add to my wishlist

  • Currently 3.50/5

Rating: 3.5/5 (2 votes cast)

4 other products in the same category:

Specification:

  • Display: 64 x 128 pixels
  • Backlight: Blue
  • Operating temperature: 0°C to 60°C
  • Operating voltage: 4.5V - 5.5V
  • Backlight voltage: 5.0V (100mA)

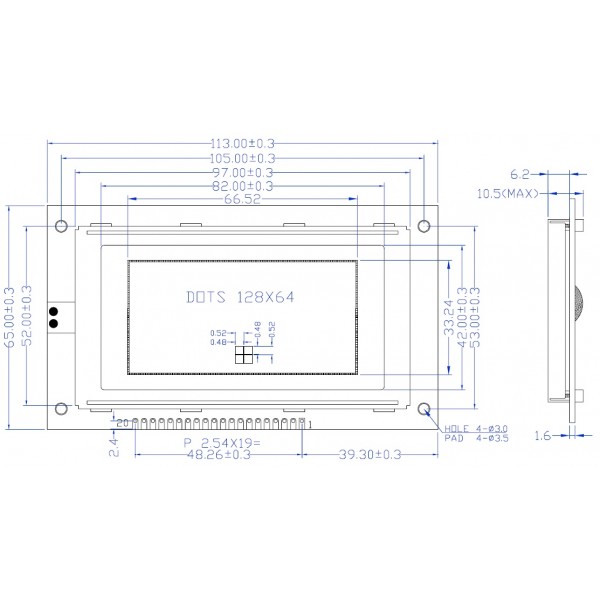

Dimension:


  • Module size: 113mm x 65mm x 10.5mm
  • Viewing area: 66.52mm x 33.24mm
  • Mounting hole (Diameter): 2.9mm



Download:

  • 128x64 GLCD Datasheet: Link
  • Code 02 - Basic Oscilloscope: Link



Remarks:

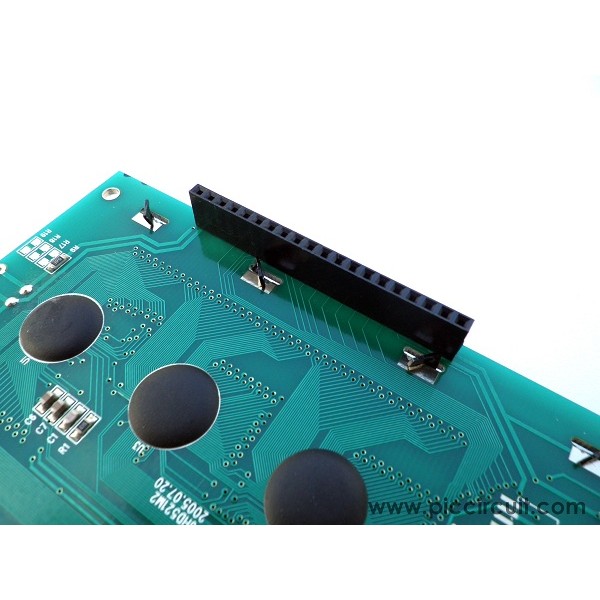

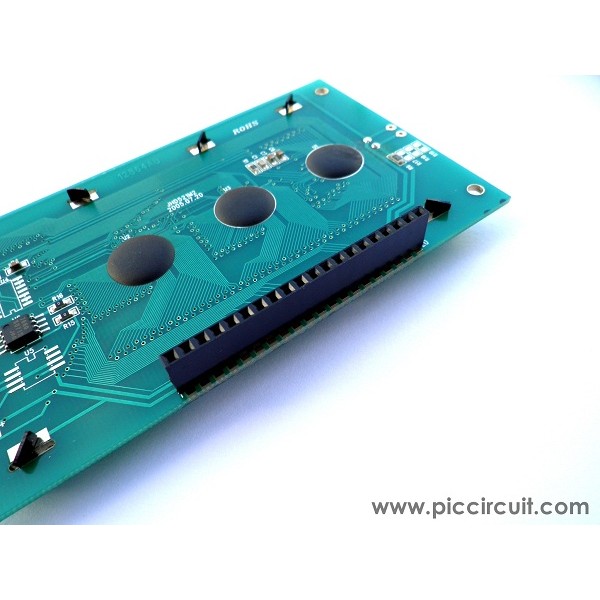

  • For iBoard usage, please choose 'Connector: Pin Socket'



Photos (with iBoard):



Cautions:

  • Overvoltage or wiring connection mistake will permanently damage the LCD
  • Keep away from extreme heat and humidity
