Home>ICs (Drivers)>ULN2003A (7x Darlington Array, PDIP-16)

ULN2003A (7x Darlington Array, PDIP-16)

ULN2003A (7x Darlington Array, PDIP-16)

This ULN2003A is a 7x high voltage, high current darlington arrays with common emitters. Each channel rated at 500 mA.

More details


$2.10

Availability: In-Stock

5 items in stock

Add to my wishlist

  • Currently 1.00/5

Rating: 1.0/5 (1 vote cast)

2 other products in the same category:

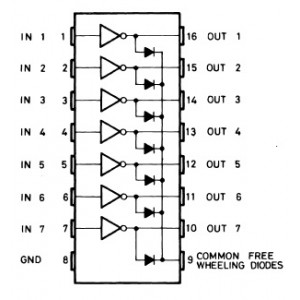

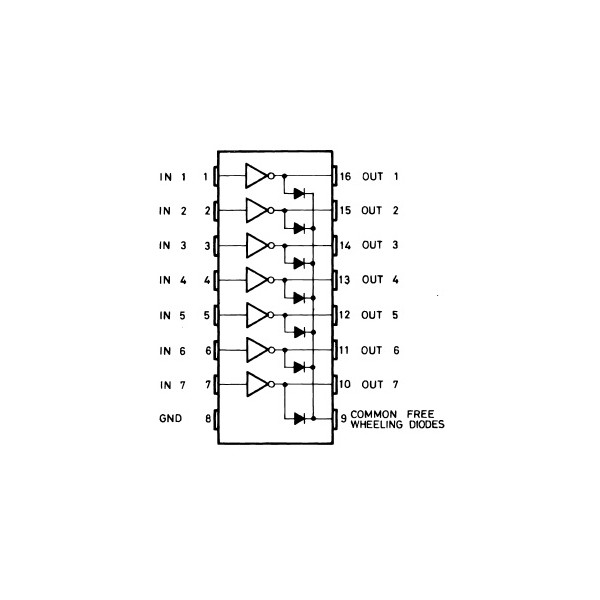

Pin Diagram:

ULN2003A Pin Diagrams

Features & Specification:

  • Seven darlingtons per package
  • Output current 500 mA per driver (600 mA peak)
  • Output voltage 50 V
  • Integrated suppression diodes for inductive loads
  • Outputs can be paralleled for higher current
  • TTL/CMOS/PMOS/DTL Compatible inputs



Download:
