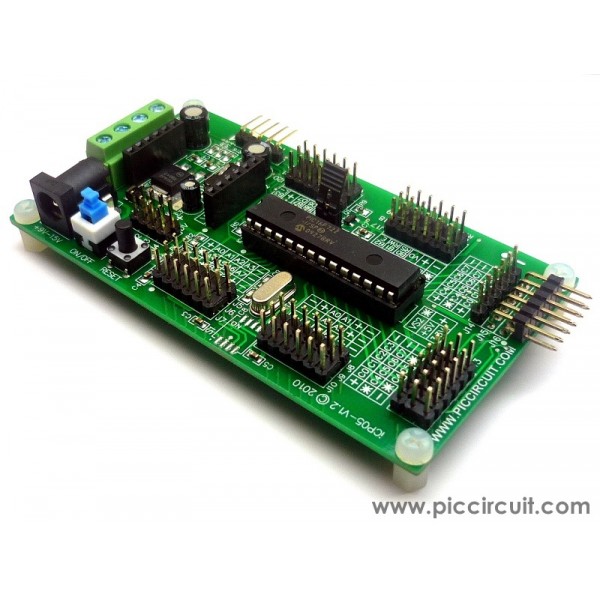

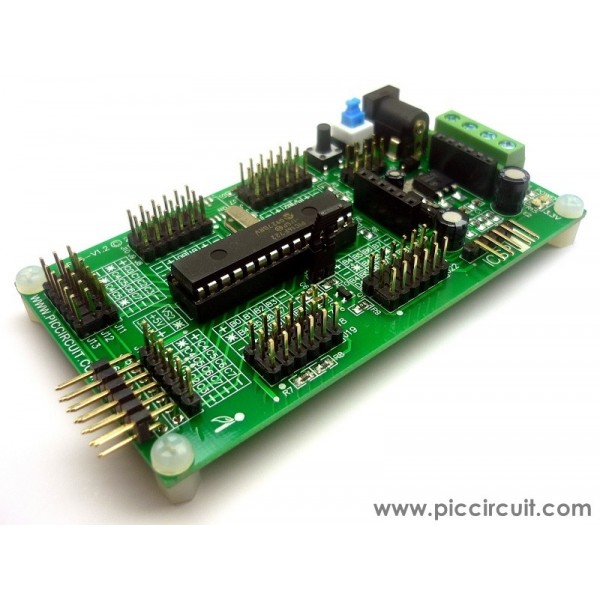

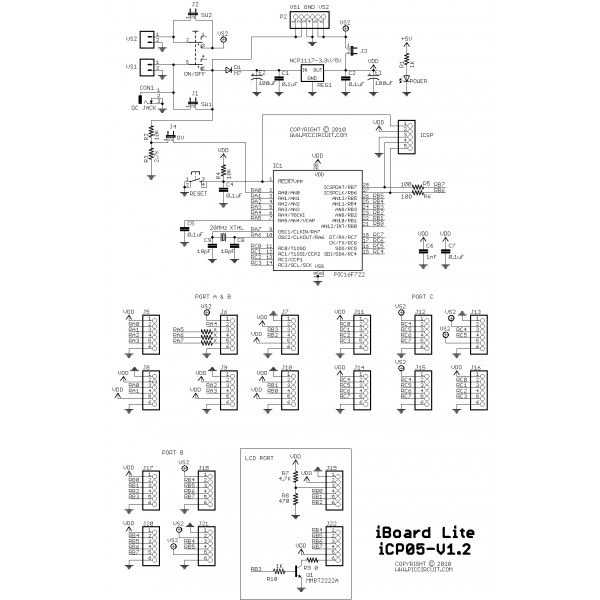

iCP05 - iBoard Lite

iBoard Lite is built with complete set of external port connection that fulfilled any type of applications (Motor control, Communication, Sensor, Data Logging, etc..) . With all these external ports, user can easily plug in different type of IO modules and with different source of supply. Also iBoard includes port for LCD display that complete with LCD backlight control and direct connections to PIC pins.

The features of iCP05 are listed as followings:

• Easy interfacing, high performance and user friendly device
• Used for programming the popular 28-Pin Flash PIC MCU, includes PIC16F and PIC18F family

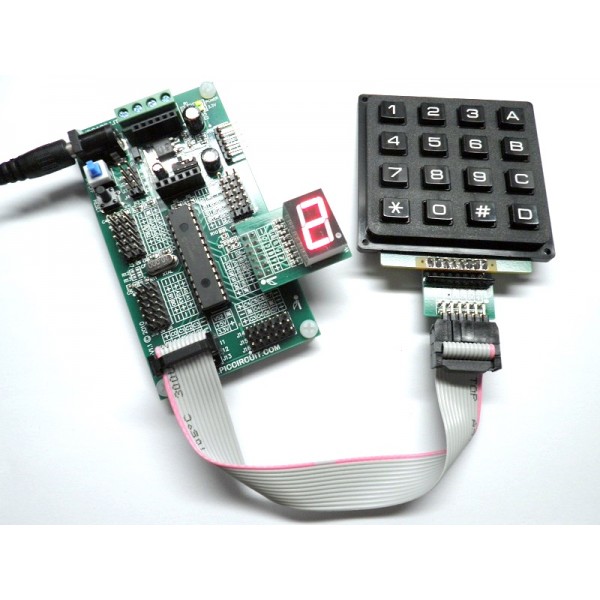

• Excellent flexibility that allows user to expand the board with plug and play modules

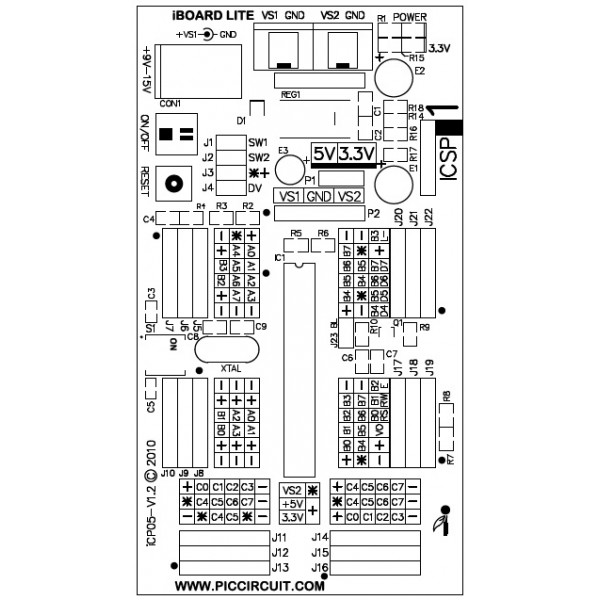

iBoard Features:

• NCP1117 - provide +5V or +3.3V Mode voltage selection to PIC Microcontroller
• 20MHz crystal - allow PIC run at maximum speed
• Tact Switch - PIC reset circuit
• On/Off button - power on off switch
• Green LED - power on indicator
• Red LED - 3.3V mode
• Screw Terminal - direct wiring connection (battery connection)
• VS1 and VS2 - different input power supply (PIC supply and external module supply)
• ICSP Connector - on-board PIC programming

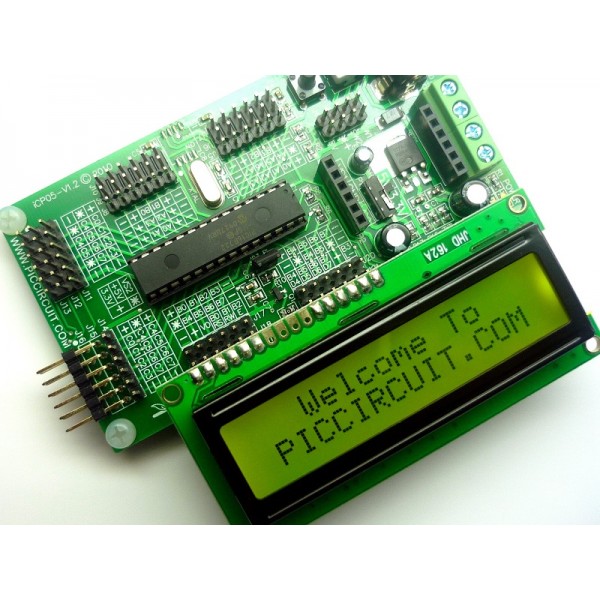

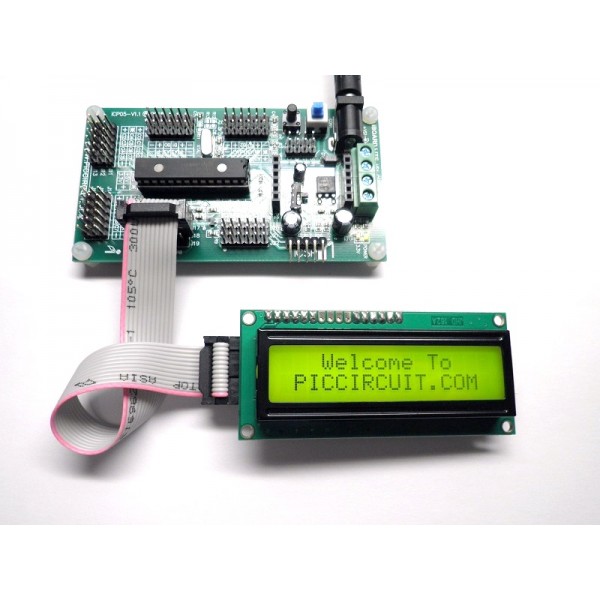

• LCD Display Port - direct LCD connection with LED backlight control (LCD Module is not provided)
• 28-Pin IC Socket - board-mounted female connectors
• Supply Measurement - detect input voltage level

Peripheral Features:

• IO Port - 8 channels
• Analog Port - 8 channels
• Servo Motor Port - 4 channels
• USART Port - 1 channel
• [New] Communication Port (SPI/I2C/USART/PS2/USB) - 1 channel
• Stepper Motor Port  (ULN2003A - 500mA Darlington driver) - 1 channel
• DC Motor Port (L293D - with speed and direction control) - 1 channel
• (ULN2003A & L293D are not provided)
• Boost/Buck Converter - 1 channel
• Off-board On/Off Switch - SW1 (VS1 Power Supply), SW2 (VS2 Power Supply)

Dimension:

• Dimension: 10cm X 5.5cm
• Standard 2.54mm Pin Socket for ICSP (In-Circuit Serial Programming) connection

Accessories List: (These accessories would be shipped together)

• Free Microchip 28 Pin Microcontroller: PIC16F722

Download:

• iCP05 User Manual: iCP05v1.2.pdf
• iCP05 User Manual: iCP05v1.1.pdf

• MPLAB IDE 8.40 (93.7MB)
• Hi-Tech C Setup Guide
• Hi-Tech C User Guide

Hi-Tech C Tutorial: (Free)

• Tutorial 1 - I/O Demo: Video

• Tutorial 2 - LCD Demo: Video

• Tutorial 3 - ADC Demo: Video

Support Devices:

• 28 Pin: PIC16F57, PIC16F72, PIC16F73, PIC16F722, PIC16F723, PIC16F726, PIC16F737, PIC16F767, PIC16F870, PIC16F872, PIC16F873A, PIC16F882, PIC16F883, PIC16F886, PIC16F913, PIC16F916, PIC16F1933, PIC16F1936, PIC16F1938, PIC18F2220, PIC18F2221, PIC18F2320, PIC18F2321, PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2423, PIC18F2431, PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480, PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523, PIC18F2525, PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585, PIC18F2610, PIC18F2620, PIC18F2680, PIC18F2682, PIC18F2685
