iCA02 - iBoard Lite Set (Microchip 28-pin PIC16 & PIC18 Development Board)

Microchip 28-pin PIC16 & PIC18 PIC IO Development Board - iBoard Lite is a low cost, easy interfacing, high performance, user friendly device and come with free Hi-Tech C source code.



More details

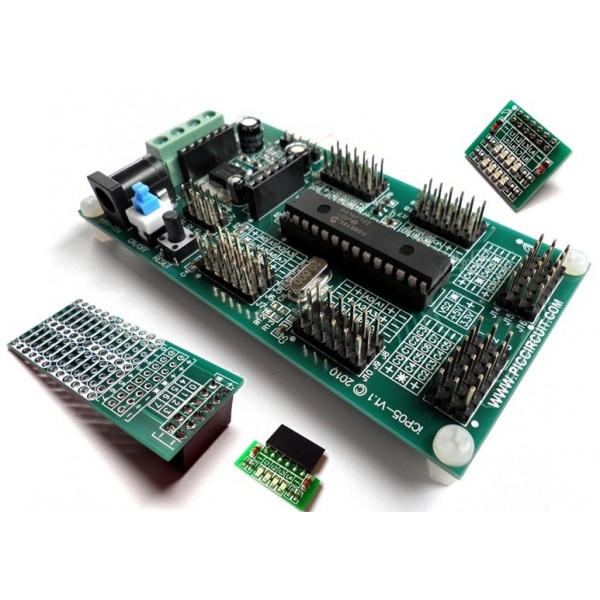

Pack content

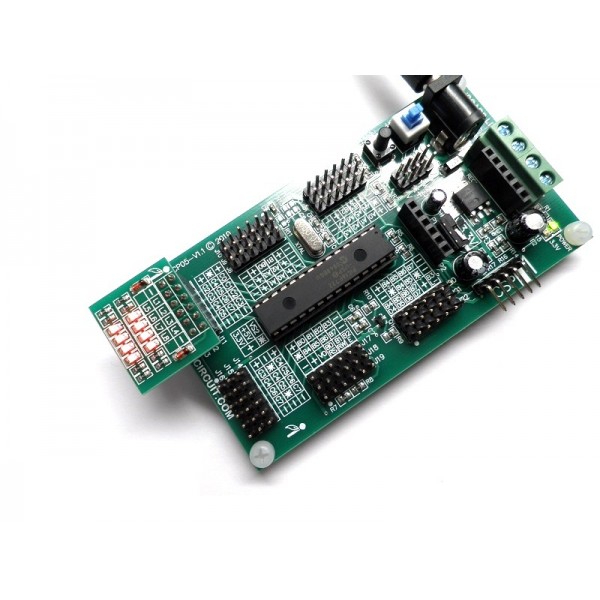

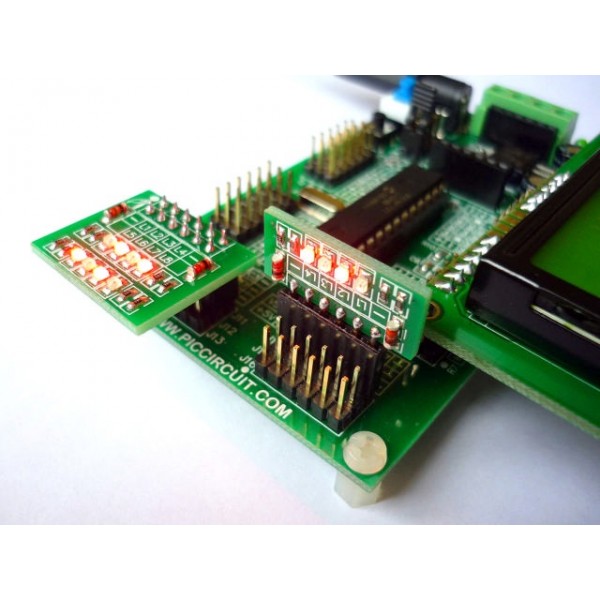

1 x iCM01 - 4 x LEDs Module

Basic four LEDs for PIC IO pins status display.

1 x iCM02 - 8 x LEDs Module

Basic eight LEDs for PIC IO pins status display.

1 x iCM05 - Blank IO Board

Blank prototype board for PIC 8 IO pin with power supply input.

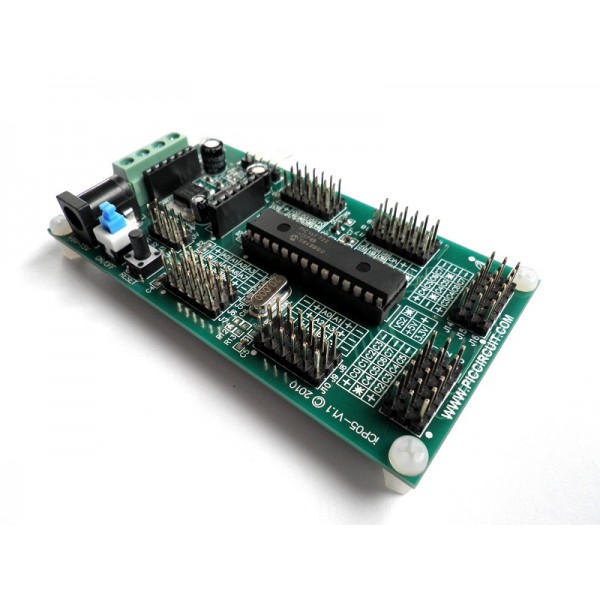

x iCP05 - iBoard Lite (Microchip 28-pin PIC16 & PIC18 Development Board)

iBoard Lite - Microchip 28 Pin PIC IO Board with low cost, easy interfacing, high performance, user friendly device and come with free Hi-Tech C source code.

On sale On sale!
$28.00

instead of $30.00


Availability: In-stock

34 items in stock

Add to my wishlist

  • Currently 5.00/5

Rating: 5.0/5 (1 vote cast)

iCA02 - iBoard Lite Set (Microchip 28-pin PIC16 & PIC18 Development Board) , 5.0 out of 5 based on 1 ratings
10 quantities5 quantities
-10% -5%

13 other products in the same category:

iBoard Lite is built with complete set of external port connection that fulfilled any type of applications (Motor control, Communication, Sensor, Data Logging, etc..) . With all these external ports, user can easily plug in different type of IO modules and with different source of supply. Also iBoard includes port for LCD display that complete with LCD backlight control and direct connections to PIC pins.



The features of iCP05 are listed as followings:

  • Easy interfacing, high performance and user friendly device
  • Used for programming the popular 28-Pin Flash PIC MCU, includes PIC16F and PIC18F family
  • Excellent flexibility that allows user to expand the board with plug and play modules



iBoard Features:

  • NCP1117 - provide +5V or +3.3V Mode voltage selection to PIC Microcontroller
  • 20MHz crystal - allow PIC run at maximum speed
  • Tact Switch - PIC reset circuit
  • On/Off button - power on off switch
  • Green LED - power on indicator
  • Red LED - 3.3V mode
  • Screw Terminal - direct wiring connection (battery connection)
  • VS1 and VS2 - different input power supply (PIC supply and external module supply)
  • ICSP Connector - on-board PIC programming

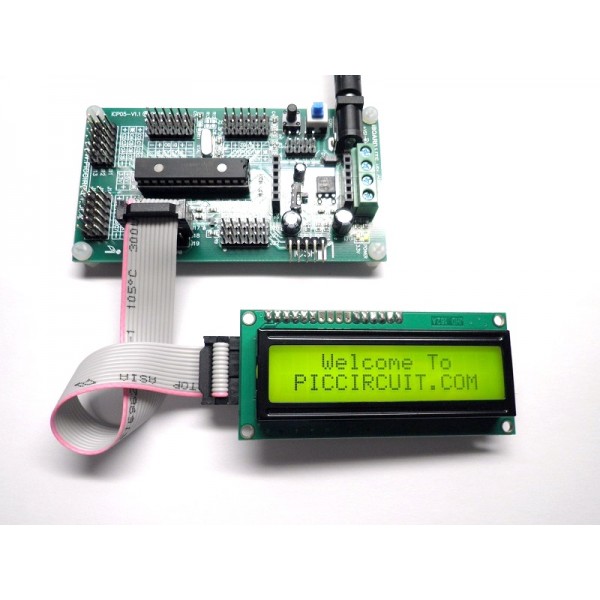

  • LCD Display Port - direct LCD connection with LED backlight control (LCD Module is not provided)
  • 28-Pin IC Socket - board-mounted female connectors
  • Supply Measurement - detect input voltage level



Peripheral Features:

  • IO Port - 8 channels
  • Analog Port - 8 channels
  • Servo Motor Port - 4 channels
  • USART Port - 1 channel
  • [New] Communication Port (SPI/I2C/USART/PS2/USB) - 1 channel
  • Stepper Motor Port  (ULN2003A - 500mA Darlington driver) - 1 channel
  • DC Motor Port (L293D - with speed and direction control) - 1 channel
  • (ULN2003A & L293D are not provided)
  • Boost/Buck Converter - 1 channel
  • Off-board On/Off Switch - SW1 (VS1 Power Supply), SW2 (VS2 Power Supply)



Dimension:

  • Dimension: 10cm X 5.5cm
  • Standard 2.54mm Pin Socket for ICSP (In-Circuit Serial Programming) connection



Accessories List: (These accessories would be shipped together)

  • Free Microchip 28 Pin Microcontroller: PIC16F722
  • Free iCM01 - 4 x LEDs Module: Schematic



Download:


Hi-Tech C Tutorial: (Free)

  • Tutorial 1 - I/O Demo: Video



  • Tutorial 2 - LCD Demo: Video



  • Tutorial 3 - ADC Demo: Video



Support Devices:

  • 28 Pin: PIC16F57, PIC16F72, PIC16F73, PIC16F722, PIC16F723, PIC16F726, PIC16F737, PIC16F767, PIC16F870, PIC16F872, PIC16F873A, PIC16F882, PIC16F883, PIC16F886, PIC16F913, PIC16F916, PIC16F1933, PIC16F1936, PIC16F1938, PIC18F2220, PIC18F2221, PIC18F2320, PIC18F2321, PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2423, PIC18F2431, PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480, PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523, PIC18F2525, PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585, PIC18F2610, PIC18F2620, PIC18F2680, PIC18F2682, PIC18F2685
