iCP07A - iBoard Tiny Extensions

iBoard Tiny Extensions is built with a simple set of external port connection that fulfilled any type connector. With these IO ports, user can easily plug in different type of IO modules and with different source of supply.

The features of iCP07 are listed as followings:

• Mini size, easy interfacing, high performance and user friendly device
• Used for programming the 8-Pin Flash PIC MCU
• Excellent flexibility that allows user to expand the board with plug and play modules

Peripheral Features:

• NCP1117 - provide +5V voltage supply to PIC Microcontroller
• Maximum Input Voltage: 15Vdc
• Internal 4 MHz oscillator
• Green LED - power on indicator
• VS1 and +5V - different input power supply (external supply or +5V supply)
• ICSP Connector - on-board PIC programming
• 6x IO Port (3x input and 3x 300mA open-collector output)

Support Devices:

• 8 Pin: PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12F615, PIC12F629, PIC12F635, PIC12F675, PIC12F679, PIC12F683

Dimension:

• Dimension: 3.5cm X 2.3cm X 1.1cm (H)
• Standard 2x1 2.54mm Pin Socket for Power Supply connection
• Standard 5x1 2.54mm Pin Socket for ICSP connection
• Standard 9x2 2.54mm Pin Socket for IO Port connection

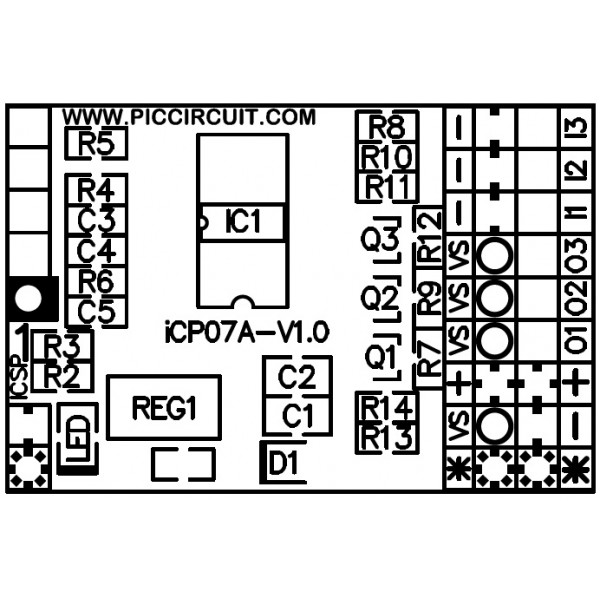

Layout:



Accessories List: (These accessories would be shipped together)

• Free 8 Pin PIC: PIC12F675 [Default] or PIC12F629, PIC12F615, PIC12F683
• Free 1x5 and 2x9 Pin Header

Download:

• iCP07Av1.0 iBoard Tiny Extensions: Schematic, Label
• PIC12F629/675 DataSheet
• PIC12F615 DataSheet
• PIC12F683 DataSheet
• PIC12F1840 DataSheet


• MPLAB IDE 8.40 (93.7MB)
• Hi-Tech C Setup Guide
• Hi-Tech C User Guide

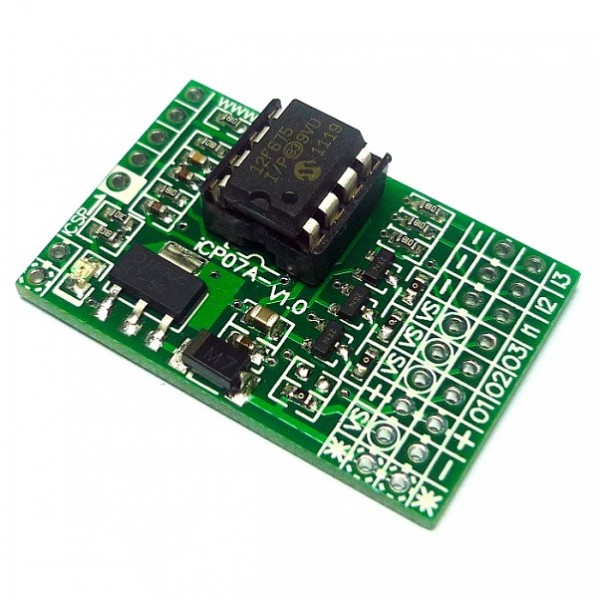

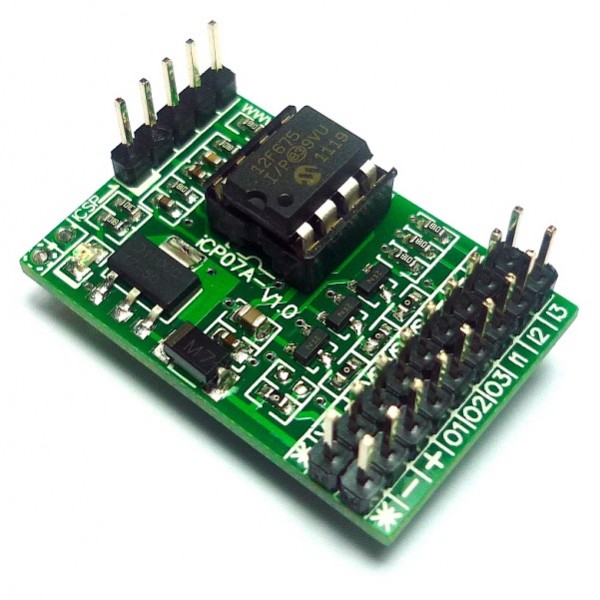

Photos (iBoard Tiny Extensions):

• with 30x RGB LED strip
•

Hi-Tech C Tutorial: Tutorial 15 - iCP07A Demo
