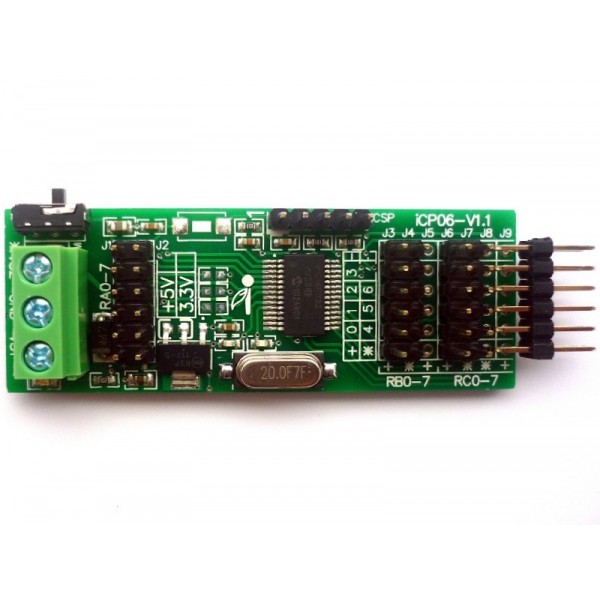

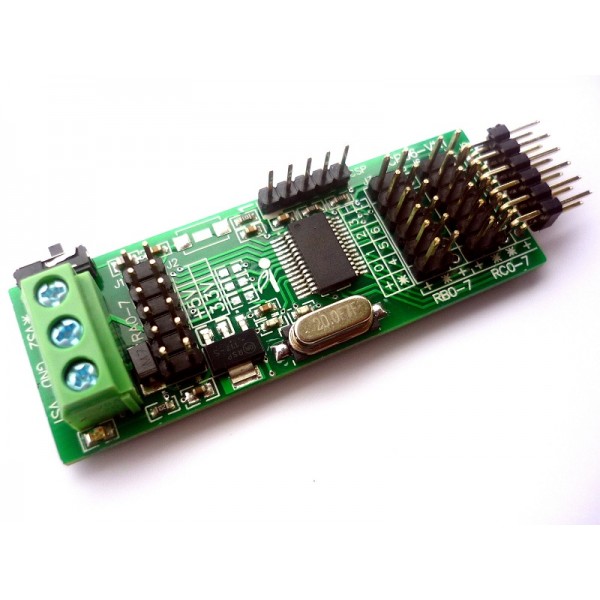

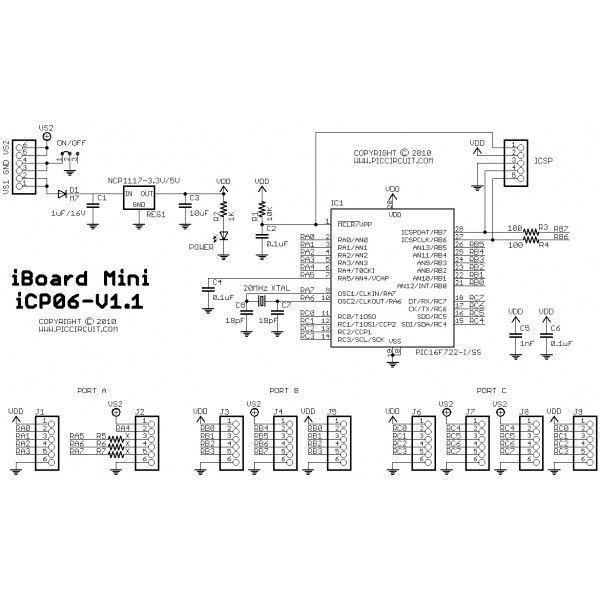

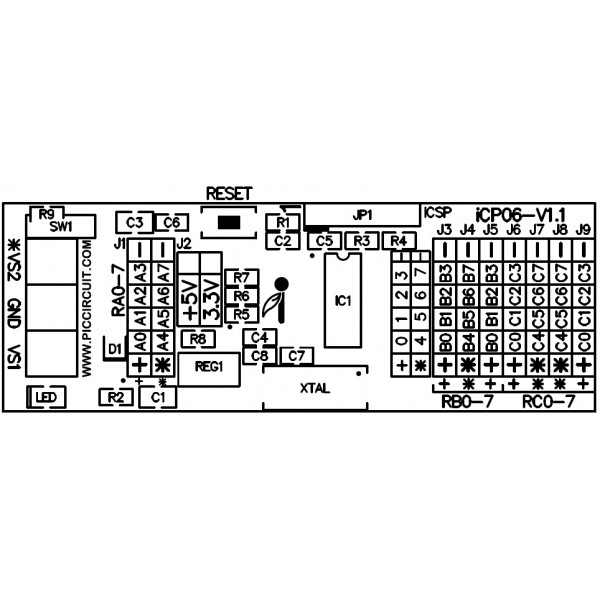

iCP06 - iBoard Mini

iBoard Mini is built with simple set of external port connection that fulfilled any type of applications (Motor control, Communication, Sensor, Data Logging, etc..) . With all these IO ports, user can easily plug in different type of IO modules and with different source of supply.

The features of iCP06 are listed as followings:

• Small size, easy interfacing, high performance and user friendly device
• Used for programming the 28-Pin PIC16F722 or PIC16F886 Flash PIC MCU
• Excellent flexibility that allows user to expand the board with plug and play modules
• Direct migration from iBoard Lite without modifying the source code

Peripheral Features:

• NCP1117 - provide +5V voltage supply to PIC Microcontroller
• Maximum Operating Voltage: 15Vdc
• 20MHz crystal - allow PIC run at maximum speed
• On/Off button - power on off switch
• Green LED - power on indicator
• Screw Terminal - direct wiring connection (battery connection)
• VS1 and VS2 - different input power supply (PIC supply and external module supply)
• ICSP Connector - on-board PIC programming
• IO Port - 3 channels

Dimension:

• Dimension: 7cm X 2.3cm X 1.1cm
• Standard 5x1 2.54mm Pin Socket for ICSP connection
• Standard 6x2 2.54mm Pin Socket for iBoard Module connection

Download:

• iCP06 User Manual: iCP06v1.1.pdf
• iCP06 User Manual: iCP06v1.0.pdf

• MPLAB IDE 8.40 (93.7MB)
• Hi-Tech C Setup Guide
• Hi-Tech C User Guide

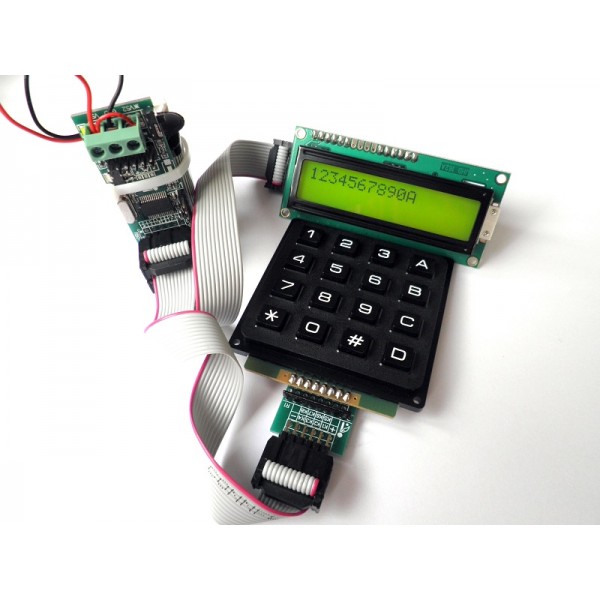

Photos (with iBoard Mini):

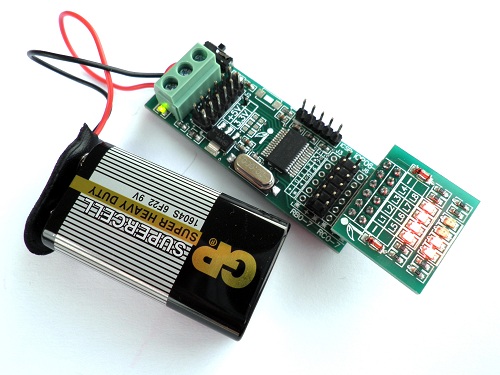

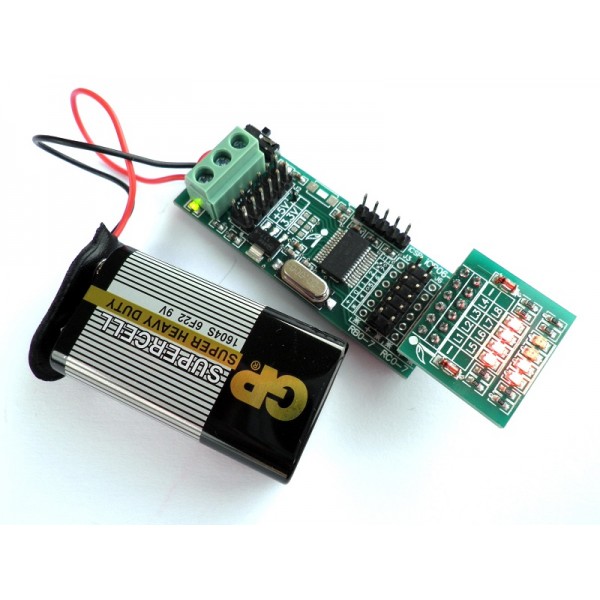

• with iCM02 - 8 x LEDs Module

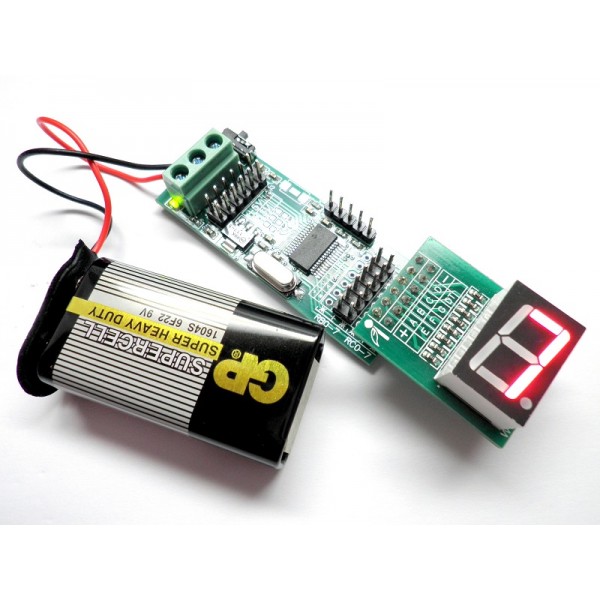

• with iCM03 - 7 Segment Display

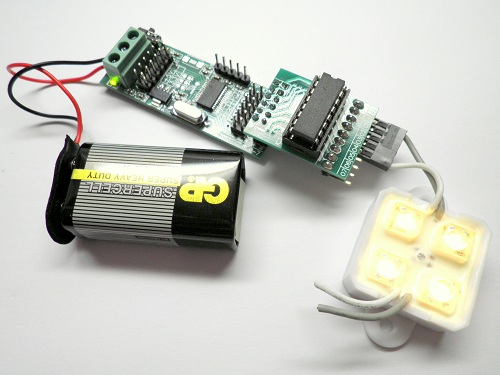

• with iCM17 - ULN2003A Driver
