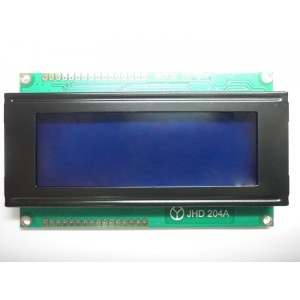

4x20 LCD Display (Blue Backlight)

4x20 LCD Display (Blue Backlight)

4x20 LCD display can be used to display up to maximum of 80 characters. Free Hi-Tech C coding is provided for the LCD control.

More details


$10.90

Availability: In-Stock

73 items in stock

Add to my wishlist

  • Currently 3.00/5

Rating: 3.0/5 (2 votes cast)

4 other products in the same category:

Specification:

  • Display: 20 characters x 4 lines
  • Backlight: Blue
  • Operating temperature: 0°C to 60°C
  • Operating voltage: 4.5V - 5.5V
  • Backlight voltage: 5.0V (100mA)



Dimension:


  • Module size: 98mm x 60mm x 14mm
  • Viewing area: 76mm x 25.2mm
  • Mounting hole (Diameter): 2.9mm



Download:

  • 4x20 LCD Datasheet: Link
  • 4x20 LCD Display Tutorial: Link



Remarks:

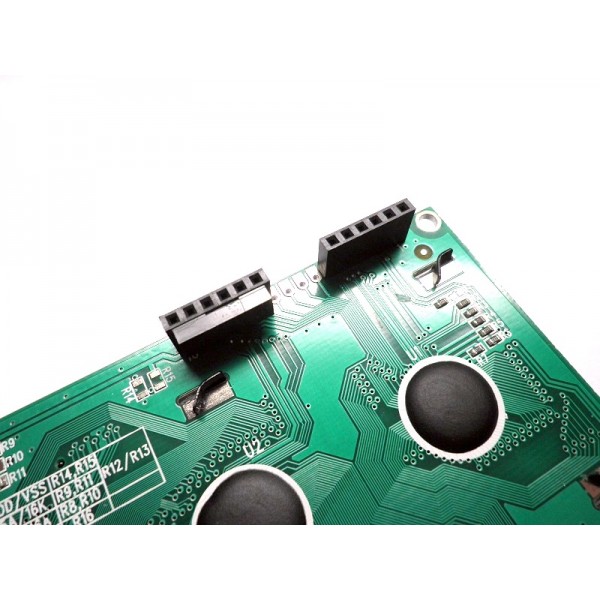

  • For iBoard usage, please choose 'Connector: Pin Socket'



Photos (with iBoard):

  • Backlight turns off
  • Backlight Off



  • Backlight turns on
  • Backlight On
  • Backlight On



Cautions:

  • Overvoltage or wiring connection mistake will permanently damage the LCD
  • Keep away from extreme heat and humidity
