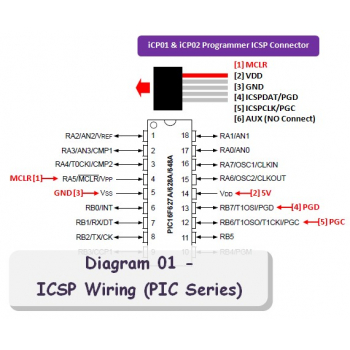

Diagram 01 - ICSP Wiring (PIC Series)

Diagram 01 - ICSP Wiring (PIC Series)

These diagrams show how to program the Microchip PIC10F, PIC12F, PIC16F, PIC18F series with ICSP (In-Circuit Serial Programming) method.

More details

Online only

Add to my wishlist

  • Currently 0.00/5

Rating: 0.0/5 (0 votes cast)

25 other products in the same category:

These diagrams show how to use iCP01 and iCP02 to program a PIC chip with ICSP (In-Circuit Serial Programming) method.

    iCP01 & iCP02 Programmer ICSP Connector

VDD Setting (5V or 3.3V):

  • 5V: for PIC operating voltage up to 5.0V and dsPIC30 series
  • 3.3V: for PIC operating voltage up to 3.3V, ‘LF’ series, 'J' series, dsPIC33 and PIC24F



Pull-up Resistor (for MCLR pin):

  • User may connect the pull-up resistor with following method:
          Pull-up Resistor for MCLR pin

Vcap Capacitor:

  • Capacitor must be connected to the VDDCORE/VCAP/VUSB pin (if exist) for proper programming operation:
           Capacitor for Vcap

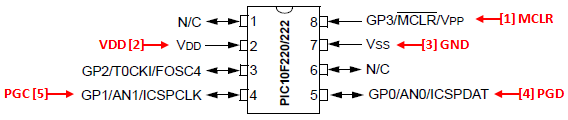

8 Pin (PIC10F Series):

PIC10F Series ICSP Wiring Diagram

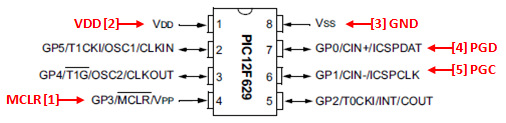

8 Pin (PIC12F Series):

PIC 8 Pin Series ICSP Wiring Diagram

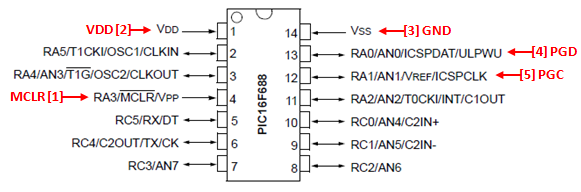

14 Pin (PIC16F Series):

PIC 14 Pin Series ICSP Wiring Diagram

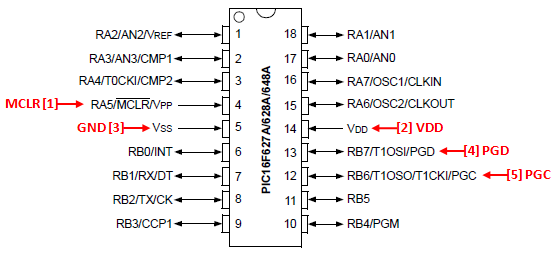

18 Pin (PIC16F Series):

PIC 18 Pin Series ICSP Wiring Diagram

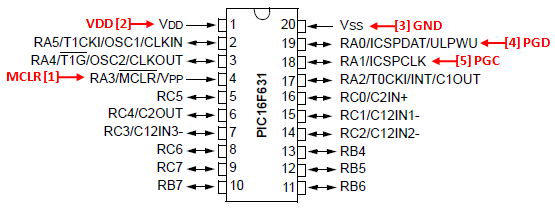

20 Pin (PIC16F, PIC18F Series):

PIC 20 Pin Series ICSP Wiring Diagram

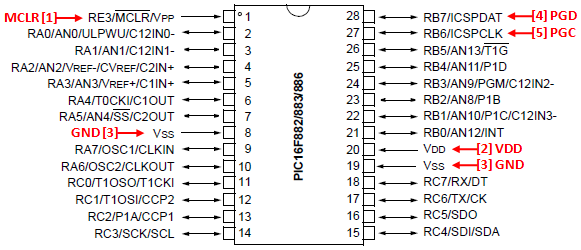

28 Pin (PIC16F, PIC18F Series):

PIC 28 Pin Series ICSP Wiring Diagram



28 Pin (PIC16F57):

PIC16F57 ICSP Wiring Diagram



40 Pin (PIC16F, PIC18F Series):

PIC 40 Pin Series ICSP Wiring Diagram

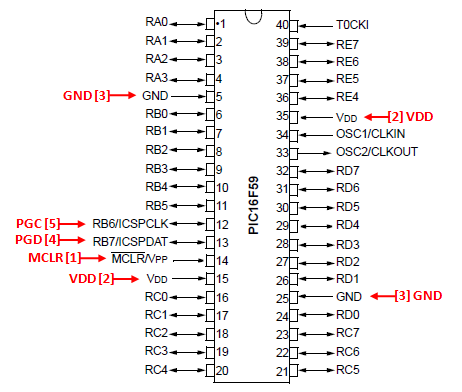

40 Pin (PIC16F59):

PIC16F59 ICSP Wiring Diagram
