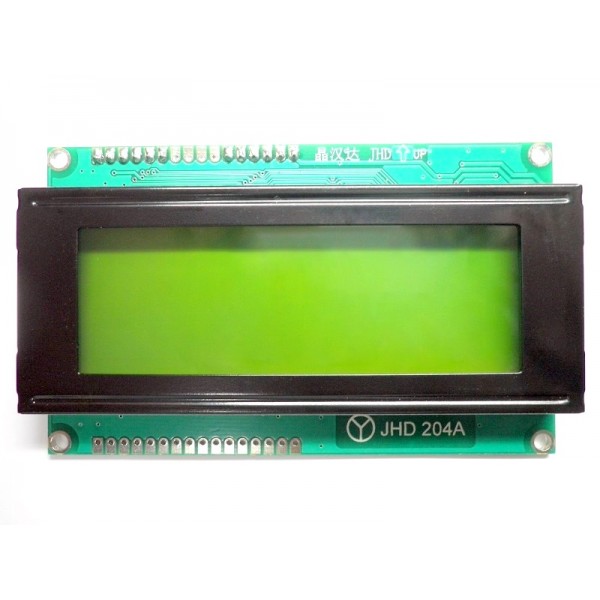

4x20 LCD Display (Yellow Backlight)

4x20 LCD Display (Yellow Backlight)

4x20 LCD display can be used to display up to maximum of 80 characters. Free Hi-Tech C coding is provided for the LCD control.

More details


Availability: In-Stock

22 items in stock

Add to my wishlist

  • Currently 0.00/5

Rating: 0.0/5 (0 votes cast)

5 other products in the same category:


  • Display: 20 characters x 4 lines
  • Backlight: Yellow
  • Operating temperature: 0°C to 60°C
  • Operating voltage: 4.5V - 5.5V
  • Backlight voltage: 5.0V (100mA)




  • Module size: 98mm x 60mm x 14mm
  • Viewing area: 76mm x 25.2mm
  • Mounting hole (Diameter): 2.9mm



  • 4x20 LCD Datasheet: Link
  • 4x20 LCD Display Tutorial: Link



  • For iBoard usage, please choose 'Connector: Pin Socket'


Photos (with iBoard):

  • Backlight turns off
  • Backlight Off


  • Backlight turns on
  • 4x20 LCD Backlight On



  • Overvoltage or wiring connection mistake will permanently damage the LCD
  • Keep away from extreme heat and humidity
