iCM18 - 8x8 Matrix IO Converter

The features of iCM18 are listed as followings:

• Direct interfacing to iBoard series (development board and IO module)
• Easy interfacing, fast soldering/desoldering and user friendly module
• Excellent flexibility with point-to-point or point-to-multipoint connection

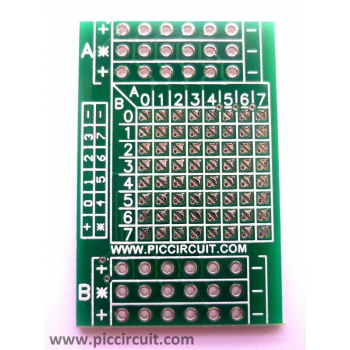

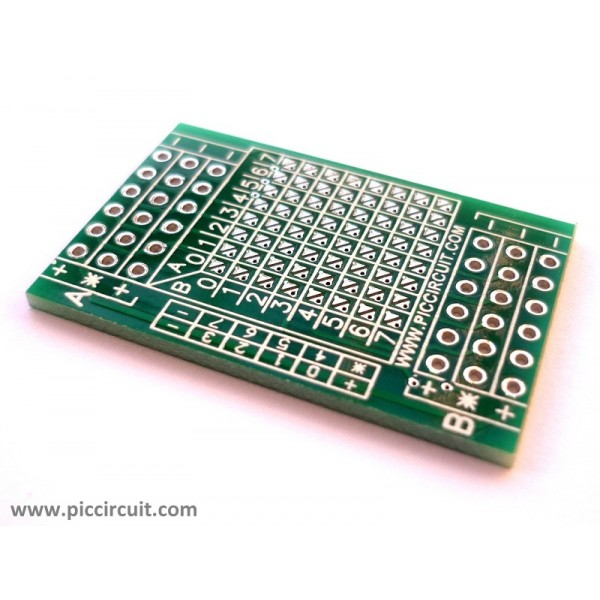

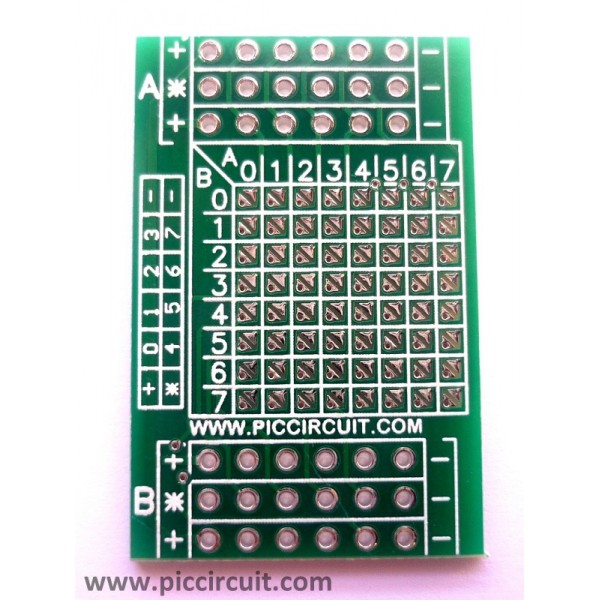

Layout:

Dimension:

• Dimension: 2.3cm x 3.5cm x 0.15cm
• Standard 2.54mm 3x6Pin Socket

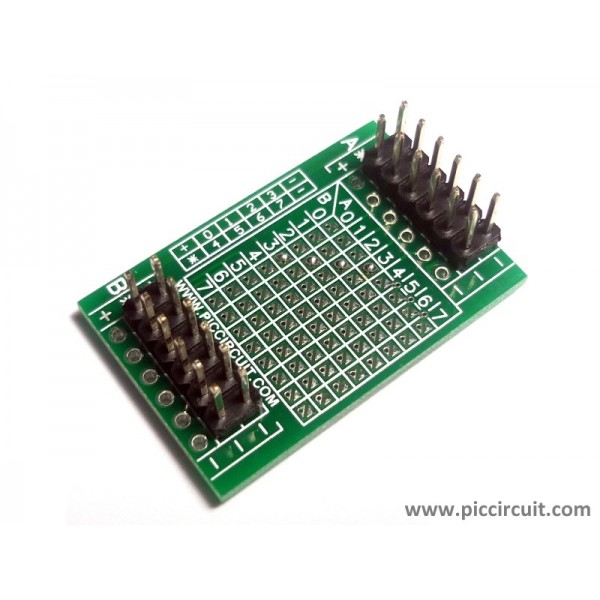

Photo (with iBoard Modules):



• iCM18 Connection: [A0:B3,B4][A1:B2,B5][A2:B1,B6][A3:B0,B7]
