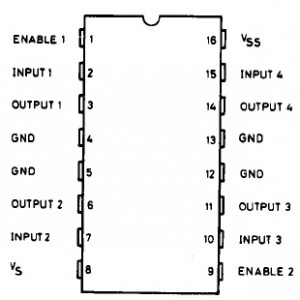

L293D (Quadruple Half-H Drivers, PDIP-16)
  • L293D (Quadruple Half-H Drivers, PDIP-16)

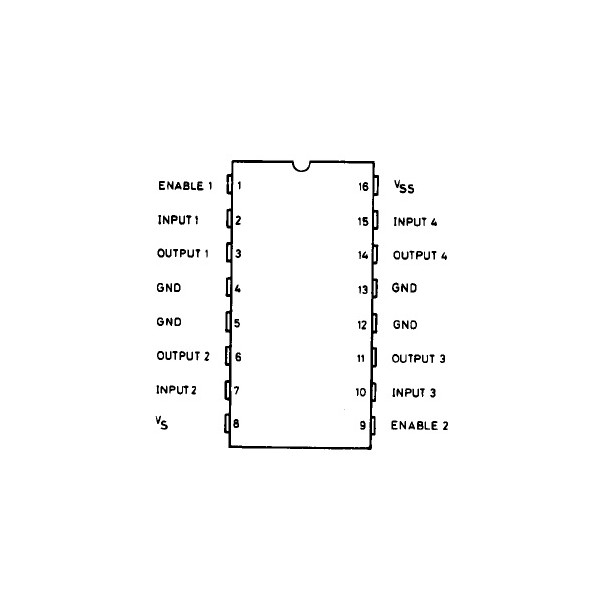

  • L293D Diagram

L293D (Quadruple Half-H Drivers, PDIP-16)

$7.30
Tax excluded Shipped within 1 week
17 Items
Qty
In-Stock

This L293D is a Quadruple Half-H Drivers to drive the inductive loads (relays, DC and stepping motors).

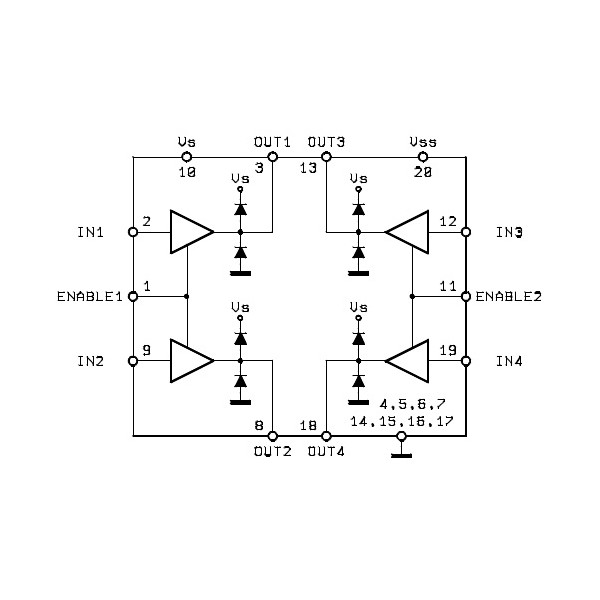

Wiring Diagram:

L293D Diagrams

Features & Specification:

  • 600mA Output Current Capability per Channel
  • 1.2A Peak Output Current (non repetitive) per Channel
  • Enable Facility
  • Overtemperature Protection
  • Internal Clamp Diodes
