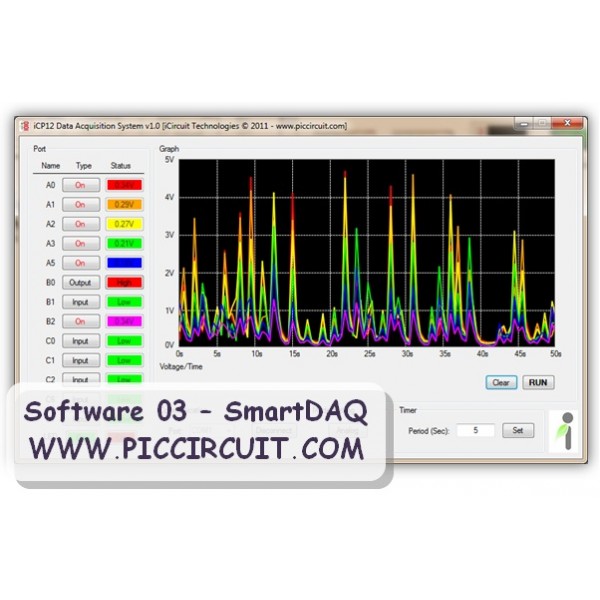

Software 03 - SmartDAQ (Data Acquisition System)

Software 03 - SmartDAQ (Data Acquisition System)

SmartDAQ can be used for 13ch signals monitoring (as oscilloscope), data acquisition and circuit troubleshooting at 1mSec/Samples period and 1mV Resolution.

More details

Online only

Add to my wishlist

  • Currently 5.00/5

Rating: 5.0/5 (1 vote cast)

Software 03 - SmartDAQ (Data Acquisition System) , 5.0 out of 5 based on 1 ratings

25 other products in the same category:

SmartDAQ is built with a user friendly interface and multifunctional port that can be applied to many types of applications. With these IO pins, user can easily to control output signals and monitor the input or analog signal with direct connection to COM port.



The features of SmartDAQ are listed as followings:

  • Friendly interface, high performance and supported with different devices
  • Waveforms display with time and voltage scale control
  • Record function with auto file name which based on date and time (10k Sample/file)
  • Saved data format can be exported to Excel or Matlab processing



New features of SmartDAQ v1.4 (with iCP12 only):

  • Sampling channel: 6x Analogs (10/12 bit ADC) + 7x Digitals (Input/Output)
    • PIC18F2550 [10bit ADC: 5mV Resolution]
    • PIC18F2553 [12bit ADC: 1mV Resolution]
  • Maximum Sampling rate: 1KHz or 1mSec/Samples
  • Sampling voltage: 0V - 5V (scalable graph) at 5mV Resolution
  • Sampling period:
    • mSec1, 2, 5, 10, 20, 50, 100, 200, 500
    • Sec: 1, 2, 5, 10, 20, 30
    • Min: 1, 2, 5, 10, 20, 30, 60
  • Actual VDD measurement for more accurate results
  • Trigger Mode: Larger [>], Smaller [<], Positive edge [↑], Negative edge [↓]
  • Display Mode: Single [>----], Left-Right [>>->>], Right-Left [<<<<<]
  • Sampling Mode: Continuous, Single
  • Zoom [X-Axis]: 1, 2, 5, 10
  • Logging Function:
    • Save Format: Text, Graphic, Both
    • Start Time: Normal, Once Trigger, 24-Hour Clock (Auto Run)
    • End Time: Unlimited, Data Size, 24-Hour Clock (Auto Stop)
  • Save Filename, Save Graph functions
  • 2x 10bits PWM Output: Frequency & Ratio control
  • VDD or External Vref Input Mode
  • Port B Pull-Up
  • Graph only dispaly [>><<]



Supported Operating System:

  • Windows OS



Supported Models:

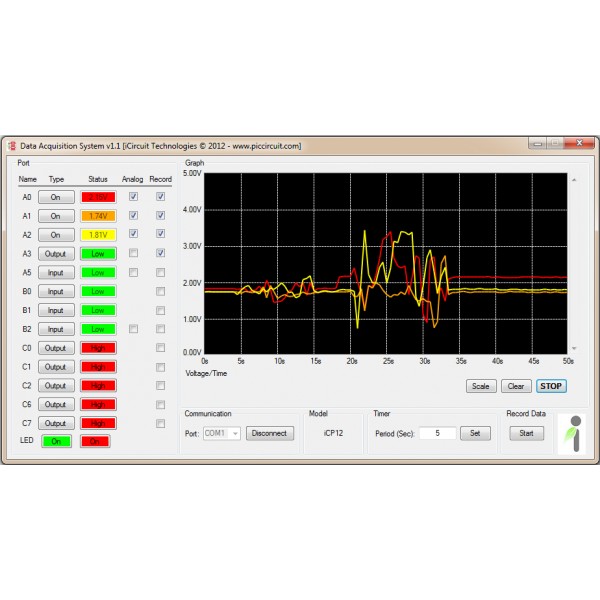

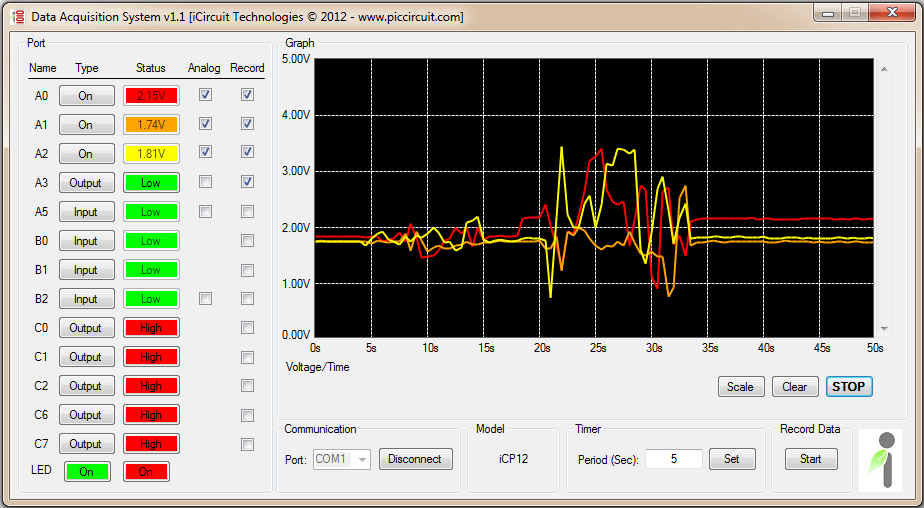

  • iCP12 - usbStick: SmartDAQ v1.4, v1.3, v1.1, v1.0

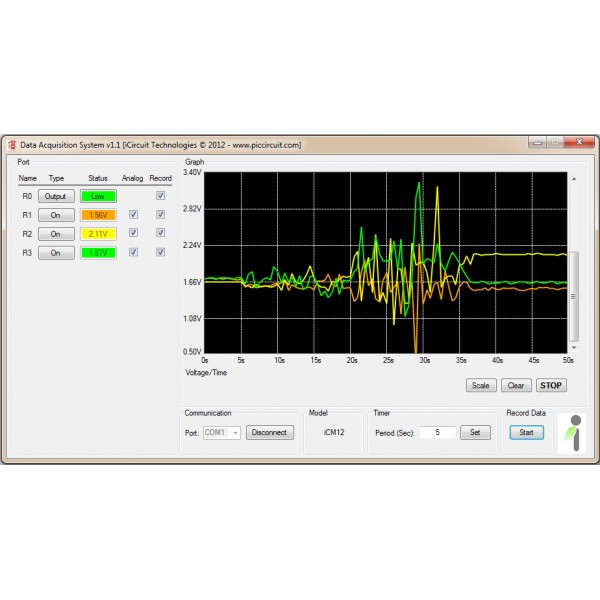

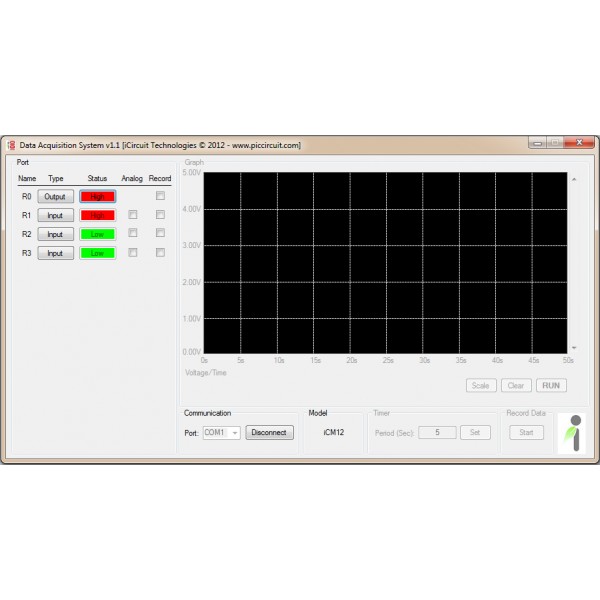

  • iCM12 - usbLink: SmartDAQ v1.1, v1.0



Photos (with iCP12 - usbStick):

  • With 'SmartDAQ v1.3'
iCP12 Data Acquisition System v1.3

  • With 'SmartDAQ v1.4'
iCP12 Data Acquisition System v1.4

  • New Graph Control Panel & Logging Panel
    SmartDAQ (Graph Panel Control)

  • 3.0V battery measurement with Vref Off/On Comparison [improve the signal accuracy]
iCP12 Vref Off/On ComparisoniCP12 Vref Connection

  • All 6x ADC signals overlap together into a single line: x1x2x5x10 (Zoom Scale)
Zoom Scale x1
  • Parallel Recording in 'Text & Graphic Form' at 1mSec Sample Rate (0.5 sec/graph)
Logging in Text & Graphic Form

  • Recorded data in 'Graph Form'
SmartDAQ (Recorded data in Graph form)

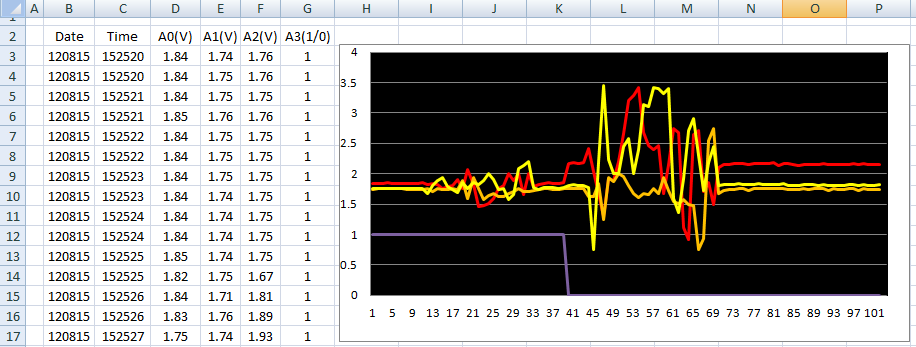

  • Excel Graph from recorded data
Recorded data in Excel form

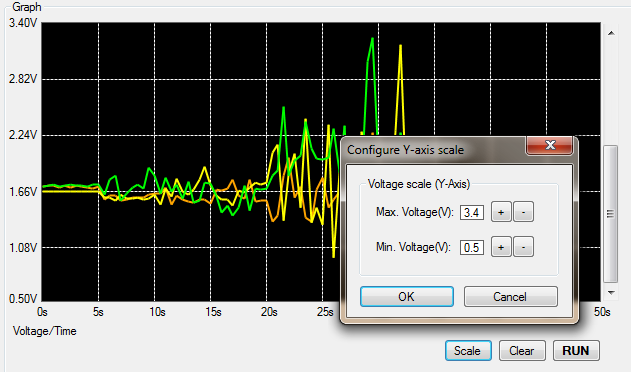

  • Voltage scale adjust (for small signals)
Scale Adjust



Video:

  • SmartDAQ Demo: (with iCP12 usbStick & iCM32 XYZ Axis Accelerometer)Video




Download:

  • SmartDAQ v1.4.0 [exe|hex]: Link
  • Recorded Data format: Graphic txt | excel
  • Please share it for more great features:



Old Version:

  • SmartDAQ v1.3.1 [exe|hex]: Link
  • SmartDAQ v1.3 [exe|hex]: Link
  • SmartDAQ v1.1 [exe|hex]: Link
  • SmartDAQ v1.0 [exe|hex]: Link
