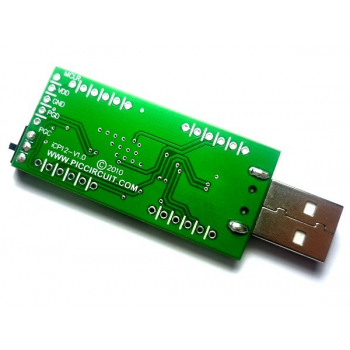

  • iCP12 - usbStick back side
  • iCP12 - usbStick Schematic
  • iCP12 - usbStick with breadboard
  • iCP12 - usbStick with breadboard & USB cable
  • 1.5M USB 2.0 Cable (A-Male to A-Female)

iCP12 - usbStick (USB DAQ, PC Oscilloscope, Data Logger, Frequency Generator, PIC18F2550 IO Board)

$18.90
Tax excluded Shipped within 1 week
187 Items
Cable
MCU

Volume discounts

Quantity Discount You Save
5 5% Up to $4.73
10 10% Up to $18.90
Qty
In-Stock

usbStick is a mini size 28 Pin USB PIC IO Board with 13x input, output, analog, pwm pins. Great tool for signals monitoring (as oscilloscope), data acquisition and circuit troubleshooting at 1mSec/Samples period.

usbStick is built with a simple set of external ports connection that fulfilled any type connector. With these IO ports, user can easily plug in different type of IO modules with direct conntection to USB port.

NEW iCP12 in Arduino Form (iCP12A - DAQduino): Link



The features of iCP12 are listed as followings:

  • Mini size, easy interfacing, high performance and user friendly device
  • Used with PIC18F2550 [Default] or PIC18F2553 28-Pin Flash USB PIC MCU
  • Excellent flexibility that allows user to expand the board with plug and play modules



Peripheral Features:

  • 13x IO Port (6x 10/12bit ADC pins, 2x 10 bit PWM/Freq/DAC pins)
  • Serial port emulation (UART Baud Rates: 300 bps to 115.2 kbps)
  • Supported operating systems (32bit/64bit): Windows XP ,Windows Vista, Windows 7, Windows 8, Windows 10, LinuxMac OS X and Raspberry Pi
  • Maximum Voltage: 5Vdc
  • 100mA current output at VDD pin with over-current protection
  • 20MHz oscillator
  • Green LED - power on indicator
  • 2x LEDs (Green, Red) - status indicator
  • ICSP Connector - on-board PIC programming
  • Switch Mode Selection - Boot or Normal mode



Applications (We welcome your feedback):

  • Space Technologies: ReGS
  • Education: TestiCP12
  • Automotive
  • Industrial

SmartDAQ v1.4 Features:

  • Sampling channel: 6x Analogs (10/12 bit ADC) + 7x Digitals (Input/Output)
    • PIC18F2550 [10bit ADC: 5mV Resolution]
    • PIC18F2553 [12bit ADC: 1mV Resolution]
  • Maximum Sampling rate: 1KHz or 1mSec/Samples
  • Sampling voltage: 0V - 5V (auto & scalable graph) at 1mV Res. Dispaly
  • Sampling period:
    • mSec1, 2, 5, 10, 20, 50, 100, 200, 500
    • Sec: 1, 2, 5, 10, 20, 30
    • Min: 1, 2, 5, 10, 20, 30, 60
  • Trigger Mode: Larger [>], Smaller [<], Positive edge [↑], Negative edge [↓]
  • Sampling Mode: ContinuousSingle
  • VDD or External Vref Input Mode
  • Logging Function:
    • Save Format: TextGraphicBoth
    • Start Time: Normal, Once Trigger, 24-Hour Clock (Auto Run)
    • End Time: Unlimited, Data Size, 24-Hour Clock (Auto Stop)



Dimension:

  • Dimension: 7.0cm X 2.3cm X 0.5cm (H)
  • Standard 1x5 2.54mm Pin Socket for ICSP connection
  • Standard 4x6 2.54mm Pin Socket for IO Port connection



Remarks:

  • Overvoltage or overcurrent may damage the MCU. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.



Layout:




Accessories List: (These accessories would be shipped together)

  • 28 Pin PIC: PIC18F2550 [Default] or PIC18F2553
  • Preloaded Firmware: HID Bootloader + iCP12 DAQv1.4 Firmware
  • iCP12 firmware can be updated using Microchip USB HID Bootloader via USB port
  • NO programmer is required!



Firmware Upgrade:

  • First, switch the SW1 to 'A' for bootloader mode and connect it to USB port
  • Then program the iCP12 with provided firmware (iCP12_xx_Firmware.hex) file
Microchip USB HID Bootloader
  • Disconnect the iCP12 and switch back the SW1 to 'B' for normal operation



Photos:

  • with SmartDAQ v1.3

iCP12 Data Acquisition System v1.3

  • 3.0V battery measurement with Vref Off/On Comparison [improve the signal accuracy]

iCP12 Vref Off/On ComparisoniCP12 Vref Connection

  • All 6x ADC signals overlap together into a single line: x1x2x5x10 (Zoom Scale)

Zoom Scale x1Zoom Scale x2Zoom Scale x5Zoom Scale x10

  • Parallel Recording in 'Text & Graphic Form' at 1mSec Sample Rate (0.5 sec/graph)

Logging in Text & Graphic Form

  • with 'ioControl'


  • with 'pwmGenerator '


  • with 'adcStream'




Video:


Download:


  • iCP12v1.0 usbStick: Schematic
  • iCP12 SmartDAQ Firmware: v1.1, v1.2v1.3v1.3.2v1.4 [New]
  • iCP12 Software Pack v1.4 (Serial Driver, Bootloader, Firmware, SmartDAQ v1.4...): zip
  • HID firmware, ioControl Demo PIC Source Code: contact us
  • FREE Visual Basic 2008 Express Software: Link
  • PIC18F2550 Datasheet: pdf
  • PIC18F2553 Datasheet: pdf
  • MPLAB IDE 8.40 (93.7MB): zip

Old Version:

  • iCP12 Software Pack v1.0 (firmware, bootloader..): zip
  • iCP12 Software Pack v1.1 (Serial Driver, bootloader..): zip
  • iCP12 Software Pack v1.2 (Serial Driver, Bootloader, Firmware, SmartDAQ v1.4...): zip



Android Apps:

iCP12 SmartDAQ Android Apps

Software:

  • Software 01 - ioControl: Link
  • Software 02 - SerialComm: Link
  • Software 03 - SmartDAQ: Link
  • Software 04 - pwmGenerator: Link
  • Software 05 - adcStream: Link



Third-Party Software:

  • TestiCP12 interface (animations control): Link
  • iCP12 IO Control for the Raspberry PI (by CWRoos): Link
  • Tool for Linux and Mac OS X to support iCP12: Link



Product Reviews::

  • Embedded Lab - iCP12 usbStick, SmartDAQ and Easy Pulse Sensor: Link
  • Electronic-Lab - iCP12 usbStick, A New Tool For Signals Control & Monitoring: Link



Source Code: FREE ioControl source code (VB2008)

  • Download link will be provided immediately after payment
  • Please download the file at [My Account][My orders][Order details][Reference]
  • Code Download Link
