iBoard Extension Cable
$0.90
Tax excluded
Shipped within 1 week
1 Item
Specific References

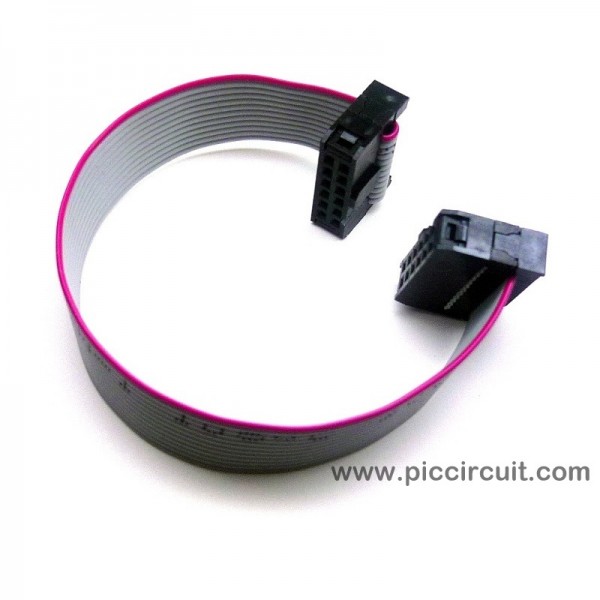

iBoard Extension Cable is used to extend the iBoard module.
Dimension:
- Wire length: ~ 15cm
- Contacts: 2x6 Way
- Pitch Spacing: 2.54mm
Photos (with iBoard):

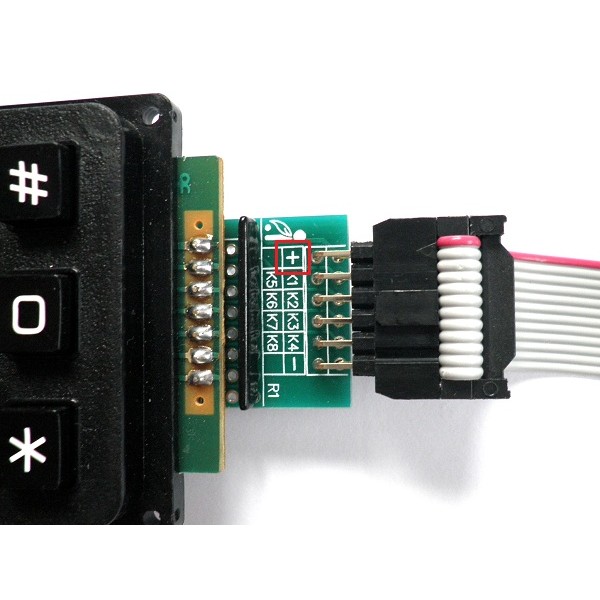

- With 4x3 Keypad
Cautions:

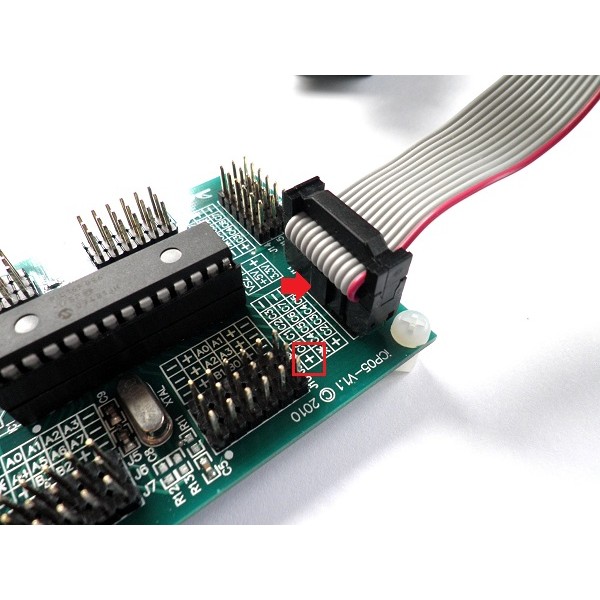

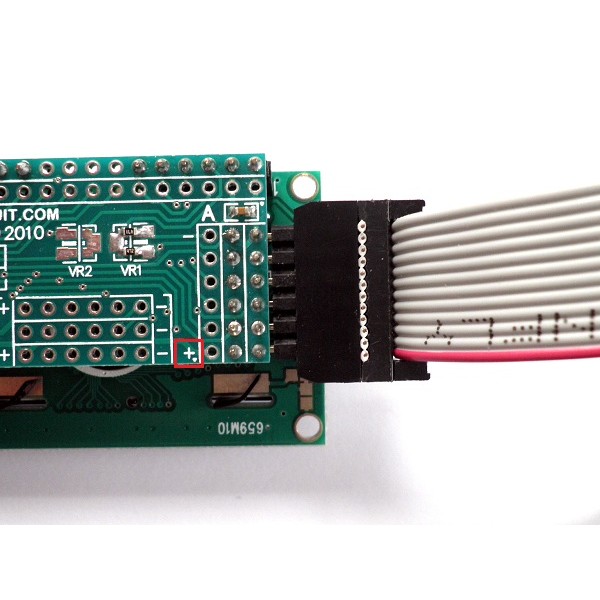

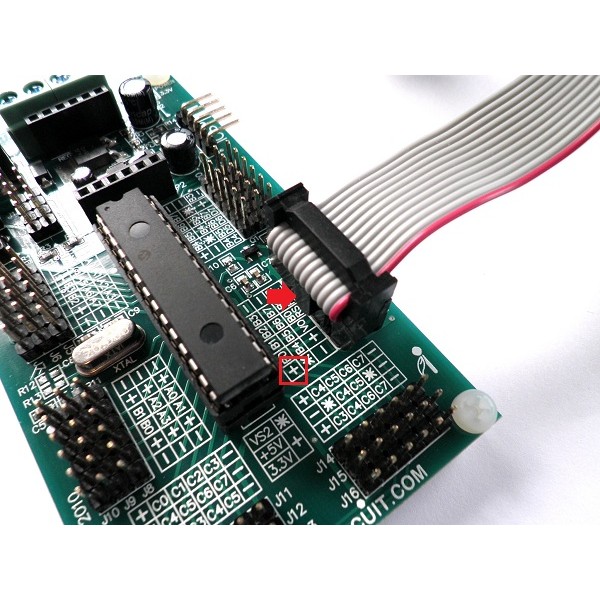

- RED cable must be always at the same side of [+] label!
- Wiring mistake will permanently damage the output modules.
