iCP07 - iBoard Tiny (Slim Version)

Tax excluded Shipped within 1 week
37 Items

Volume discounts

Quantity Discount You Save
5 5% Up to $2.50
10 10% Up to $10.00

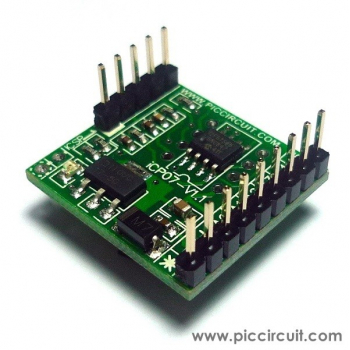

iBoard Tiny (Slim) is a slim size 8 Pin PIC IO Board with lowest cost, easy interfacing, high performance, user friendly and come with free Hi-Tech C source code.

iBoard Tiny is built with a simple set of external port connection that fulfilled any type connector. With these IO ports, user can easily plug in different type of IO modules and with different source of supply.


The features of iCP07 are listed as followings:

  • Mini size, easy interfacing, high performance and user friendly device
  • Used for programming the 8-Pin Flash PIC MCU
  • Excellent flexibility that allows user to expand the board with plug and play modules


Peripheral Features:

  • NCP1117 - provide +5V voltage supply to PIC Microcontroller
  • Maximum Input Voltage: 15Vdc
  • Internal 4 MHz oscillator
  • Green LED - power on indicator
  • VS1 and +5V - different input power supply (external supply or +5V supply)
  • ICSP Connector - on-board PIC programming
  • 6x IO Port


Support Devices:

  • 8 Pin: PIC12F629, PIC12F675



  • Dimension: 2.5cm X 2.3cm X 0.4cm (H)
  • Standard 5x1 2.54mm Pin Socket for ICSP connection
  • Standard 9x1 2.54mm Pin Socket for IO Port connection





Accessories List: (These accessories would be shipped together)

  • Free 8 Pin PIC: PIC12F675 [Default] or PIC12F629
  • Free 1x5 and 1x9 Pin Header

1x9 & 1x5 Pin Header



Photos (with iBoard Tiny):


Hi-Tech C Tutorial: (Free)
