64x128 Graphic LCD Display (Blue Backlight)
  • 64x128 Graphic LCD Display (Blue Backlight)

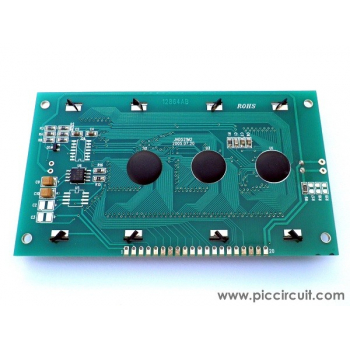

  • 64x128 Graphic LCD Display Back Side
  • 64x128 Graphic LCD Display Dimension

128x64 Graphic LCD Display (Blue Backlight)

$18.00
Tax excluded
0 Item
Connector
Qty
There are not enough products in stock

128x64 Graphic LCD Display (Blue Backlight) can be used to display up to maximum of 128 x 64 pixels.


Specification:

  • Display: 64 x 128 pixels
  • Backlight: Blue
  • Operating temperature: 0°C to 60°C
  • Operating voltage: 4.5V - 5.5V
  • Backlight voltage: 5.0V (100mA)



Dimension:


  • Module size: 113mm x 65mm x 10.5mm
  • Viewing area: 66.52mm x 33.24mm
  • Mounting hole (Diameter): 2.9mm



Download:

  • 128x64 GLCD Datasheet: Link
  • Free Code 02 - Basic Oscilloscope: Link


Source Code:

  • Download link will be provided immediately after payment
  • Please download the file at [My Account][My orders][Order details][Reference]




Remarks:

  • For iBoard usage, please choose 'Connector: Pin Socket'



Photos (with iBoard):



Cautions:

  • Overvoltage or wiring connection mistake will permanently damage the LCD
  • Keep away from extreme heat and humidity
