iCA01 - USB PIC Programmer Set (with iCP01v2)
On sale! Pack
  • iCA01 - USB PIC Programmer Set (with iCP01v2)
  • iCA01 - USB PIC Programmer Set
  • iCA01 - USB PIC Programmer Set
  • ICSP connector reference connection
  • iCA01 - USB PIC Programmer Set with USB Cable
  • iCA01 - USB PIC Programmer Set with USB Cable
  • iCA01 - USB PIC Programmer Set with USB Cable

iCA01 - USB Microchip PIC Programmer Set (with iCP03 Adapter)

$31.90
Tax excluded Shipped within 1 week
47 Items

This pack contains

Volume discounts

Quantity Discount You Save
10 10% Up to $31.90
Qty
In-stock

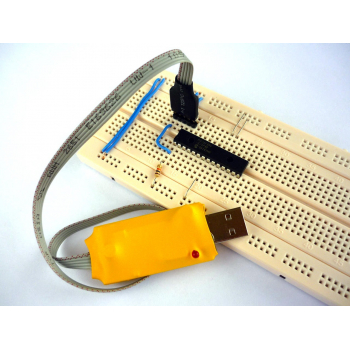

USB PIC Programmer Set allows users to program their hex code into Microchip Flash PIC MCU by using In-Circuit Programming (ICSP) method or Off-Board Programming (Adapter) method with MPLAB and PICKit 2 software.

Accessories List :

  • USB cable is not provided to save material and shipping cost
  • Please add 1.5M USB 2.0 Cable for extra USB cable



1a. iCP02v2 - USB PIC Programmer (3.3V/5.0V): iCP02 User Manual.pdf

  • Low cost, small size , high performance and user friendly device
  • No external power supply is required
  • 120mA current output at VDD pin with over-current protection
  • Used for programming up to 260+ (with PICkit2) or nearly 1100 (with PICkit2 Plus) type of popular Flash PIC MCU, includes PIC10F, PIC12F, PIC16F, PIC18F, PIC24F, dsPIC30 and dsPIC33 family
  • Read and write operation for serial EEPROM 11LCXX, 24LCXX, 25LCXX, 93LCXX and HCSXX
  • Supported operating systems (32bit/64bit): Windows XP ,Windows Vista, Windows 7, Windows 8, Windows 10, Linux and Mac OS X
  • Compatible with Microchip's PICkit 2, MPLAB IDE and MPLAB X
  • USB plug and play function
  • Excellent flexibility that allows using in both PC desktop and laptop
  • Full-Speed USB & High Voltage programming
  • Dimension: 6.2cm X 2.5cm X 0.5cm, easy to carry and store
  • ICSP wire length: ~ 30cm
  • Standard 6 x 2.54mm Pin Socket for ICSP connection
  • Adjustable VDD source (2.5V to 5.0V) with auto detection and auto selection
  • VPP First Program Entry (VDD control) feature


1b. iCP01v2 - USB PIC Programmer:

  • Low cost, small size , high performance and user friendly device
  • No external power supply is required
  • 120mA current output at 5V VDD pin with over-current protection
  • Used for programming up to 200 type of popular Flash PIC MCU, includes PIC10F, PIC12F, PIC16F, PIC18F and dsPIC30 family
  • Supported operating systems (32bit/64bit): Windows XP ,Windows Vista, Windows 7, Windows 8, Windows 10, Linux and Mac OS X
  • Compatible with Microchip's PICkit 2 and MPLAB IDE
  • USB plug and play function
  • Excellent flexibility that allows using in both PC desktop and laptop
  • Full-Speed USB & High Voltage programming
  • Dimension: 6.2cm X 2.5cm X 0.5cm, easy to carry and store
  • ICSP wire length: ~ 30cm
  • Standard 2.54mm Pin Socket for ICSP connection
  • Supported for 5V VDD operation voltage (supplied by programmer)
  • Supported for 3.3V, J-Series PIC family with external VDD power supply
  • VPP First Program Entry (VDD control) feature

2. iCP03v1.2 - Multi PIC Adapter: iCP03v1.2 User Manual.pdf

  • PIC programmer adapter which can support 8-pin to 40-pin devices by using single ZIF socket



Support Devices: please check with us for not listed or new PIC chip

  • 8 Pin: PIC10F200, PIC10F202, PIC10F204, PIC10F206, PIC10F220, PIC10F222, PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12F615, PIC12F617, PIC12F629, PIC12F635, PIC12F675, PIC12F679, PIC12F683, PIC12F1822, PIC12F1840
  • 14 Pin: PIC16F505, PIC16F506, PIC16F526, PIC16F610, PIC16F616, PIC16F630, PIC16F636, PIC16F676, PIC16F684, PIC16F688, PIC16F1823, PIC16F1824, PIC16F1825
  • 18 Pin: PIC16F54, PIC16F84A, PIC16F87, PIC16F88, PIC16F627, PIC16F627A, PIC16F628, PIC16F628A, PIC16F648A, PIC16F716, PIC16F818, PIC16F819, PIC16F1826, PIC16F1827, PIC18F1220, PIC18F1230, PIC18F1320, PIC18F1330, PIC16F1847
  • 20 Pin: PIC16F631, PIC16F639, PIC16F677, PIC16F685, PIC16F687, PIC16F689, PIC16F690, PIC16F720, PIC16F721, PIC16F785, PIC16F1828, PIC16F1829, PIC18F13K22, PIC18F13K50, PIC18F14K22, PIC18F14K50, PIC18F13K22, PIC18F13K50, PIC18F14K22, PIC18F14K50
  • 28 Pin: PIC16F57 (ICSP only), PIC16F72, PIC16F73, PIC16F76, PIC16F722, PIC16F722A, PIC16F723, PIC16F723A, PIC16F726, PIC16F737, PIC16F767, PIC16F870, PIC16F872, PIC16F873, PIC16F873A, PIC16F876, PIC16F876A, PIC16F882, PIC16F883, PIC16F886, PIC16F913, PIC16F916, PIC16F1516, PIC16F1518, PIC16F1782, PIC16F1783, PIC16F1933, PIC16F1936, PIC16F1938, PIC18F242, PIC18F252, PIC18F248, PIC18F258, PIC18F2220, PIC18F2221, PIC18F2320, PIC18F2321, PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2423, PIC18F2431, PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480, PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523, PIC18F2525, PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585, PIC18F2610, PIC18F2620, PIC18F2680, PIC18F2682, PIC18F2685, PIC18F23K22, PIC18F24K22, PIC18F25K22
  • 40 Pin: PIC16F59 (ICSP only), PIC16F74, PIC16F77, PIC16F707, PIC16F724, PIC16F727, PIC16F747, PIC16F777, PIC16F871, PIC16F874, PIC16F874A, PIC16F877, PIC16F877A, PIC16F884, PIC16F887, PIC16F914, PIC16F917, PIC16F1517, PIC16F1519, PIC16F1934, PIC16F1937, PIC16F1939, PIC18F442, PIC18F452, PIC18F448, PIC18F458, PIC18F4220, PIC18F4221, PIC18F4320, PIC18F4321, PIC18F4331, PIC18F4410, PIC18F4420, PIC18F4423, PIC18F4431, PIC18F4450, PIC18F4455, PIC18F4458, PIC18F4480, PIC18F4510, PIC18F4515, PIC18F4520, PIC18F4523, PIC18F4525, PIC18F4550, PIC18F4553, PIC18F4580, PIC18F4585, PIC18F4610, PIC18F4620, PIC18F4680, PIC18F4682, PIC18F4685, PIC18F43K22 PIC18F44K22, PIC18F45K22, PIC18F46K22
  • dsPIC30 (With ICSP only): dsPIC30F1010, dsPIC30F2010, dsPIC30F2011, dsPIC30F2012, dsPIC30F2020, dsPIC30F2023, dsPIC30F3010, dsPIC30F3011, dsPIC30F3012, dsPIC30F3013, dsPIC30F3014, dsPIC30F4011, dsPIC30F4012, dsPIC30F4013



Download:



Tutorial:

  • Tutorial 16 - PIC Programming (Linux OS): Link
  • Tutorial 17 - PIC Programming (Mac OS X): Link



Product Reviews:

  • Embedded Lab - Choosing a PIC Programmer (Special Thanks to Raj): Link
